Object Type: Kubernetes Service#

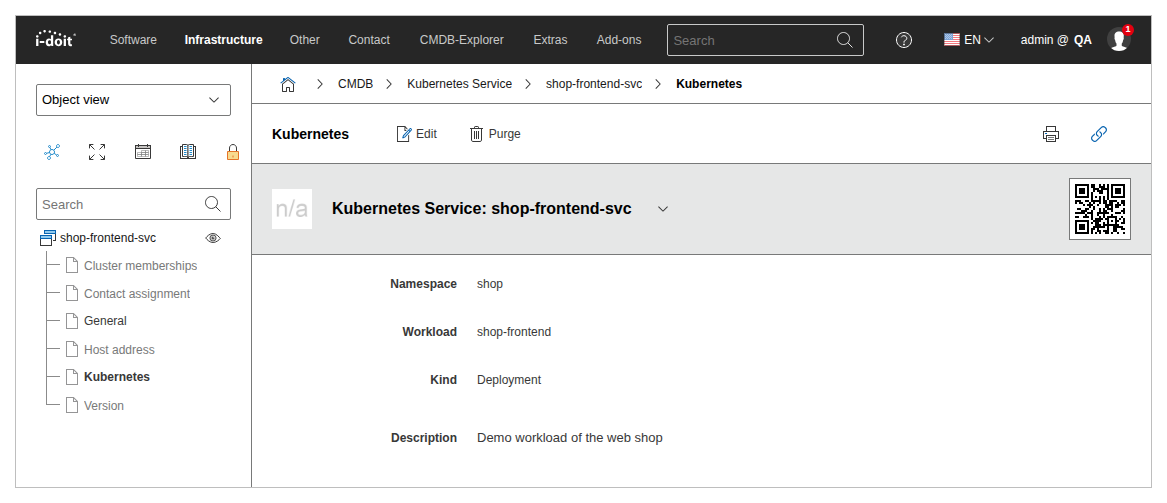

The Kubernetes Service object type documents Kubernetes services, i.e. the stable network endpoint through which a group of pods is reached. Namespace, workload and kind are recorded in the Kubernetes category.
New in i-doit 39
The object types Kubernetes Service, Kubernetes Pod and Kubernetes Container are available as of i-doit 39. They are located in the object type group Infrastructure.
Usage#
- Service catalog: Document all Kubernetes services per namespace, for example
shop-frontend-svcin the namespaceshop. - Network addresses: Record the cluster IP or the external address of the service in the Host Address category.
- Cluster assignment: Link the object to the Kubernetes cluster (object type Cluster) via the Cluster memberships category. The cluster then appears as a relation in the CMDB-Explorer.
- Responsibilities: Assign the responsible team or person via Contact assignment.
Assigned Categories#
Global Categories#
- General
- Kubernetes
- Cluster memberships
- Contact assignment
- Host Address
- Logbook
- Relation
- Version Number
- Status Planning
- Overview page
- Access permissions
Technical Reference#
| Property | Value |
|---|---|
| Object Type Constant | C__OBJTYPE__K8S_SERVICE |
| Group | Infrastructure |
