Report Manager#

Reporting is a suitable tool for condensing, preparing, and sharing data with third parties. i-doit therefore includes a Report Manager that can fully process data from the IT documentation.

Overview#

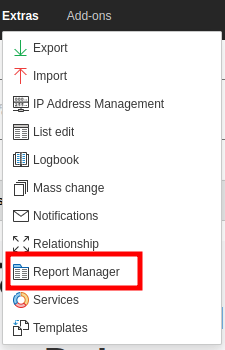

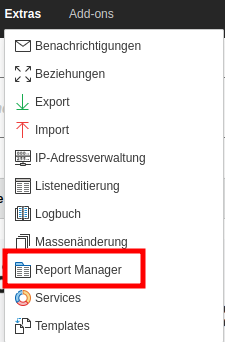

The Report Manager can be accessed via the main navigation bar under Extras → Report Manager. In the navigation tree on the left side, the items Reports, Online Repository, and Views appear, which are described below. If the Report Manager or the items in the navigation tree do not appear or appear incompletely, this is due to missing permissions.

Report Special Add-on#

With the Report Special add-on, approximately 50 pre-built reports are imported. More information about the add-on can be found in the Customer Portal.

Evaluating a Report#

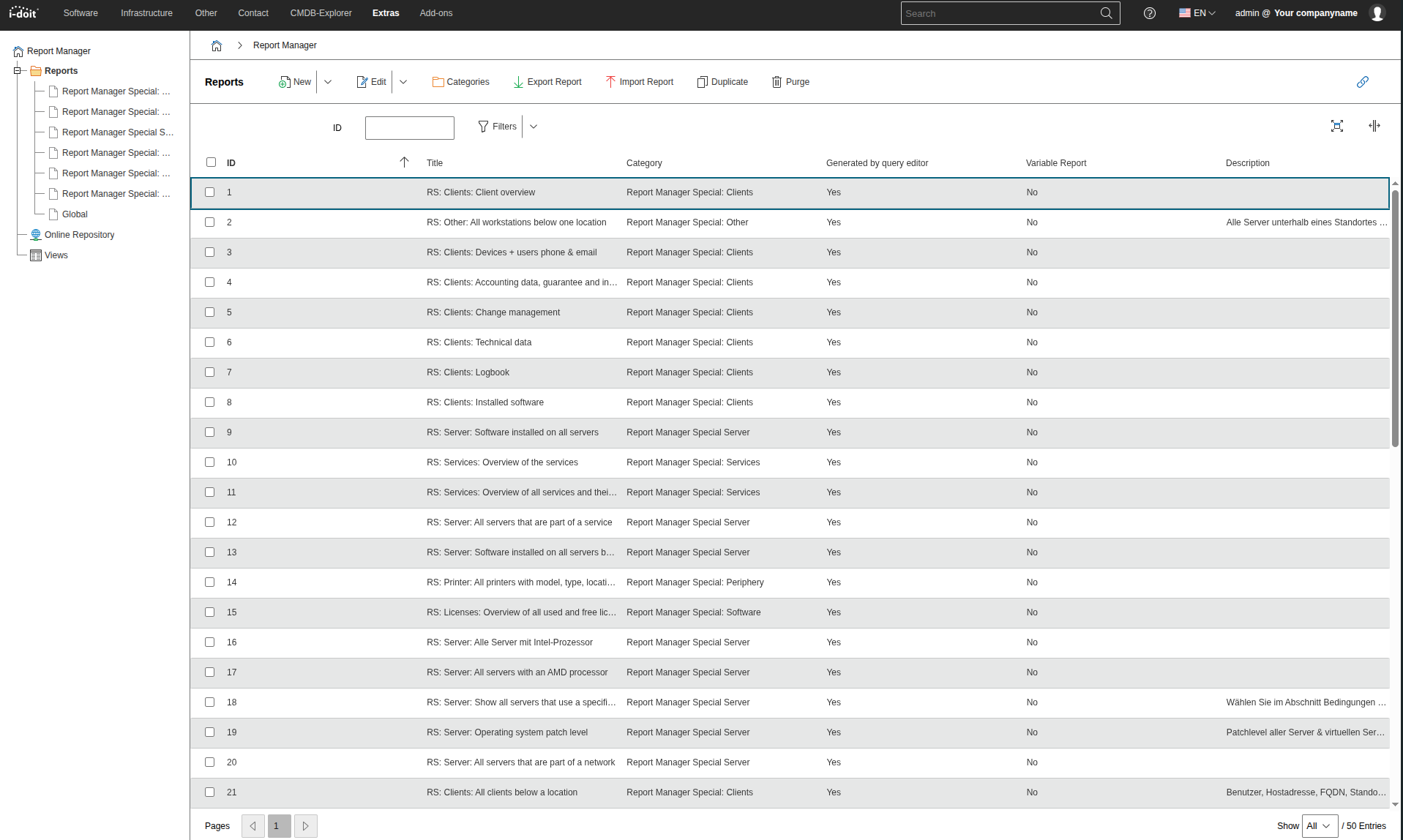

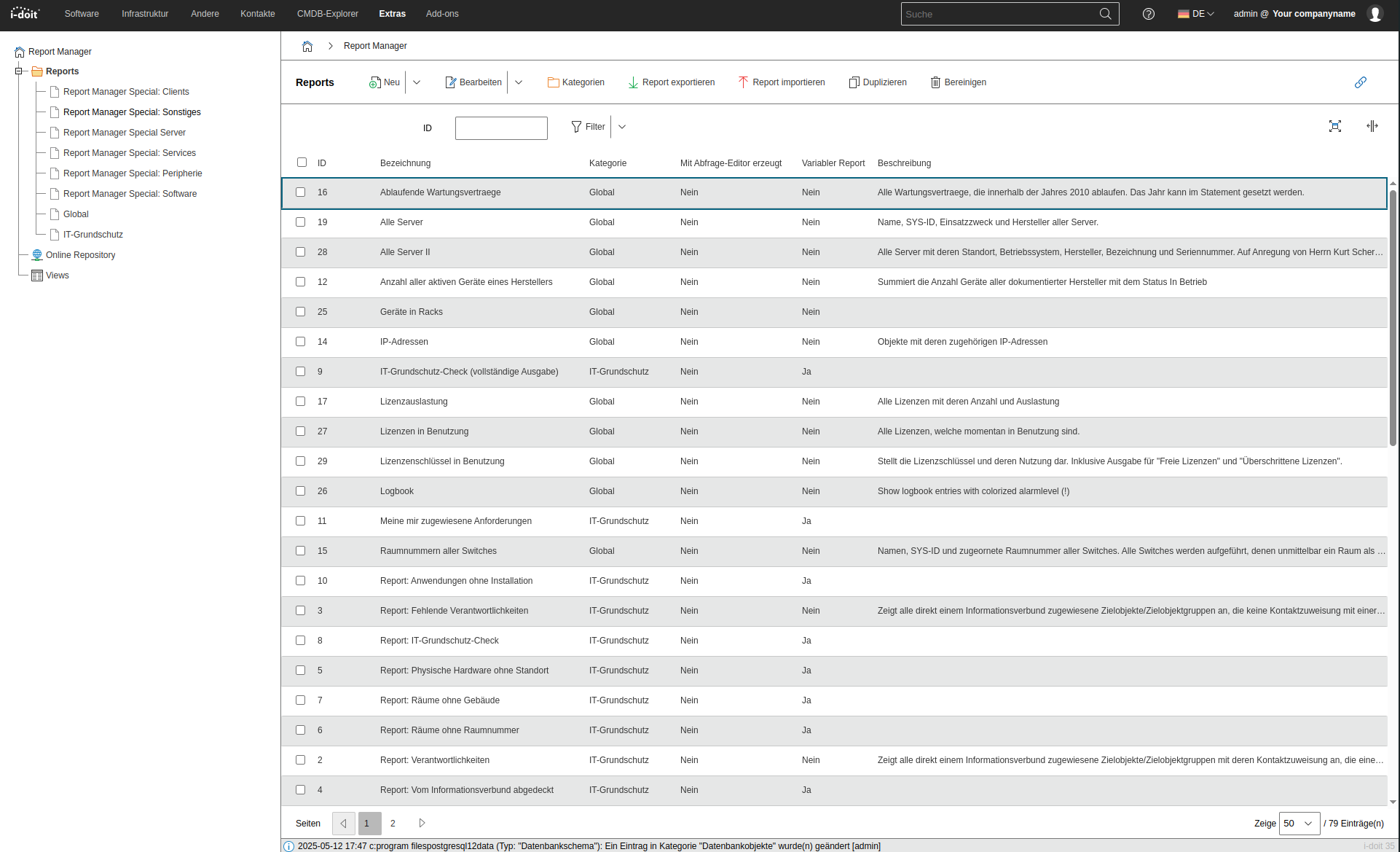

The self-created reports are located under Reports. After the setup of i-doit, there are no reports in this area yet.

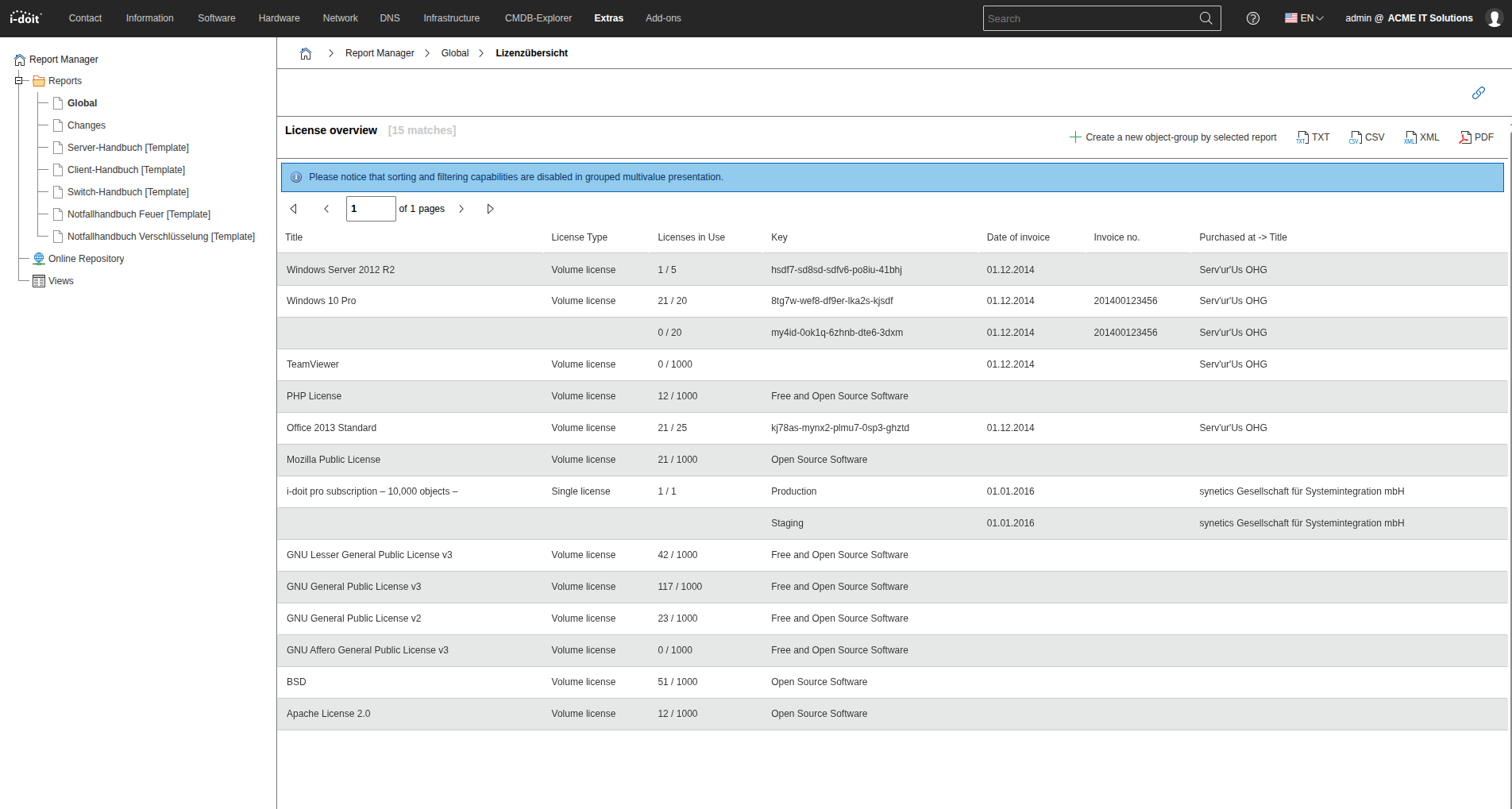

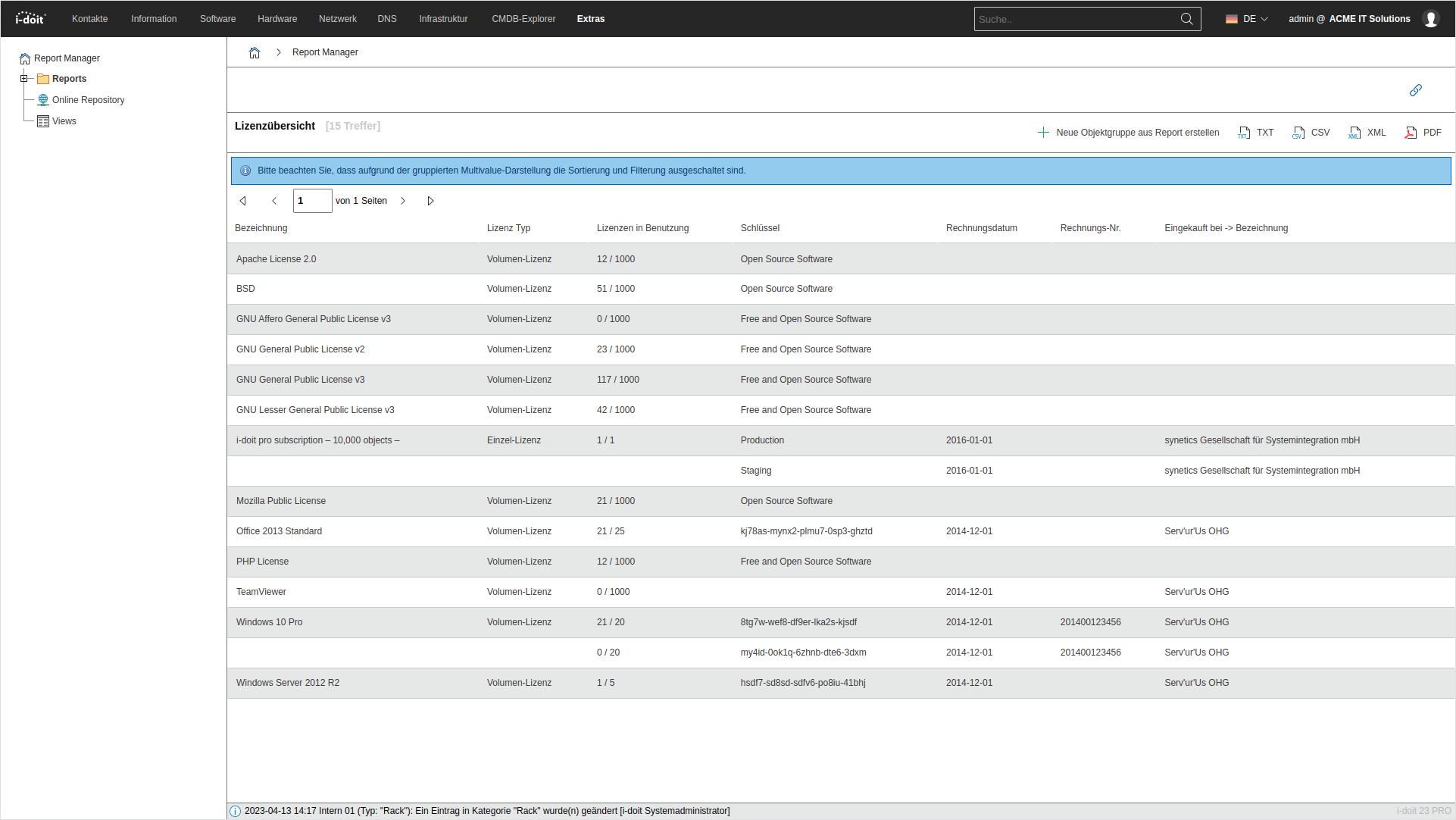

Click on a report in the list to execute it with the current data. The result list is presented in tabular form. Reports always focus on objects and their attributes -- each result row focuses on a main object, for which any attributes such as relationships to other objects may be specified. Click on a row to open the corresponding object.

The table offers various functionalities (column sorting, filtering by a column, pagination). Furthermore, a report can be exported to various formats (plain text, CSV, XML, and PDF). For further processing with a spreadsheet program or similar, export to CSV format is recommended.

From a report, you can generate an object of type Object Group. The objects from the report are statically assigned to the category of the same name. Alternatively, you create an Object Group with dynamic assignment: Select the corresponding setting in the Type category and link a report. The object group then always contains the current result list of the report -- determined at runtime.

Categorizing Reports#

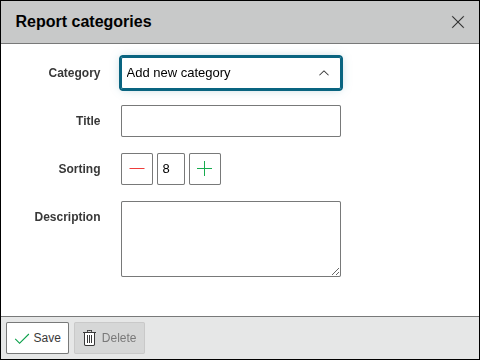

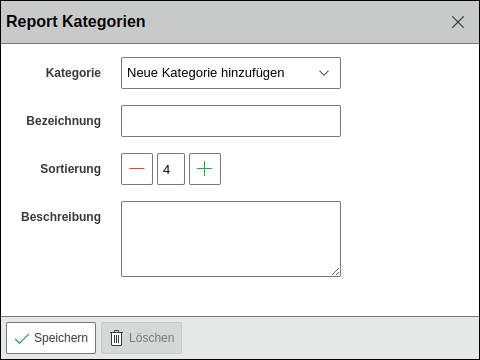

Reports can be organized into categories. By default, they are assigned to the Global category, which cannot be deleted. The advantage: You can define per category who is allowed to access it. On the Reports page, you create or edit categories via the Categories item. The optionally description field helps with orientation.

Creating or Editing a Report#

You can copy reports by selecting a report and clicking Duplicate. Via the Purge button, you irrevocably delete a report.

Two methods are available for creating a report, which are explained in more detail below.

Query Editor#

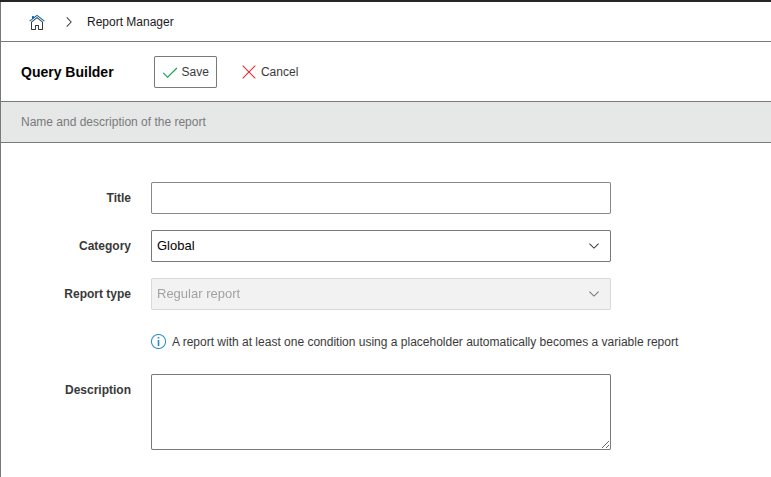

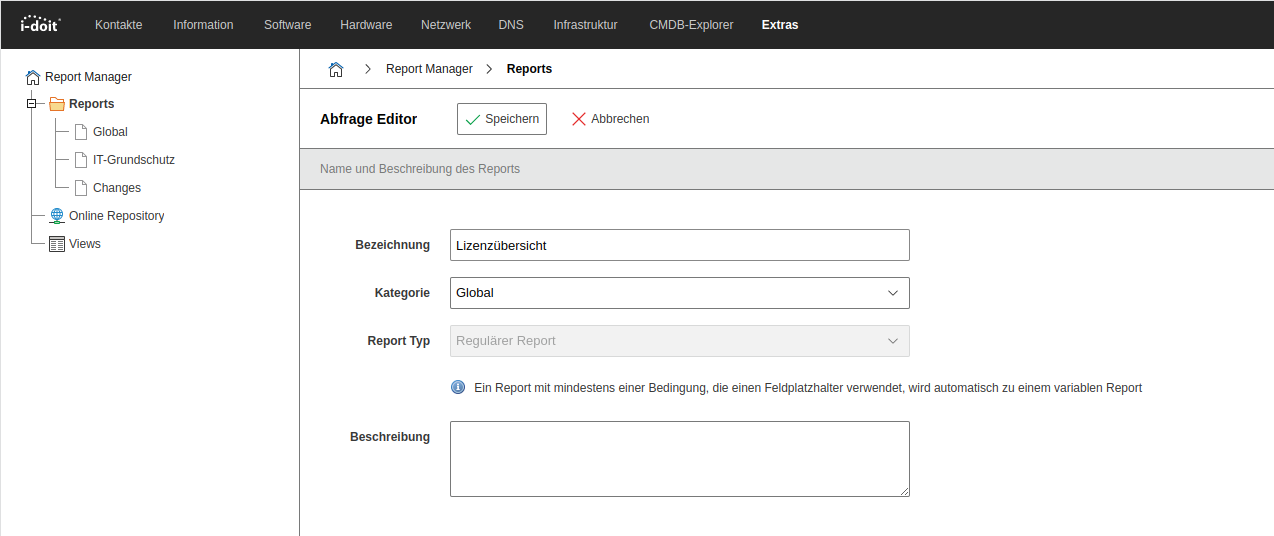

The Query Editor provides a graphical interface for creating or editing reports. Access it via the New button or select Query Editor from the drop-down field next to it. To edit an existing report, check the checkbox next to the report and click one of the mentioned buttons.

Essential are the title and the category. Additionally, it is often helpful to provide a short description. Via the Check button, the report can be tested. A popup displays a maximum of 25 results.

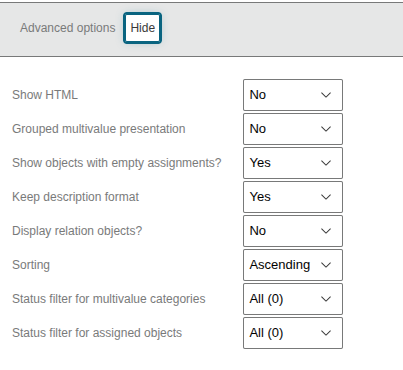

Advanced Options#

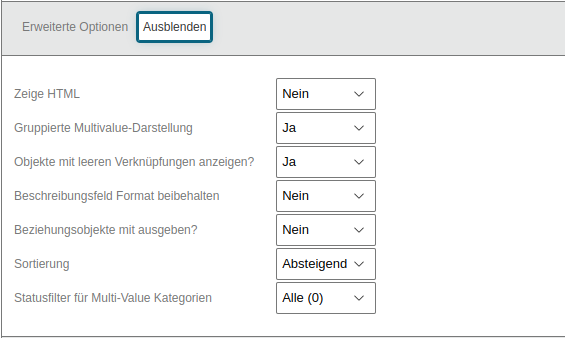

The following advanced options are available.

Output#

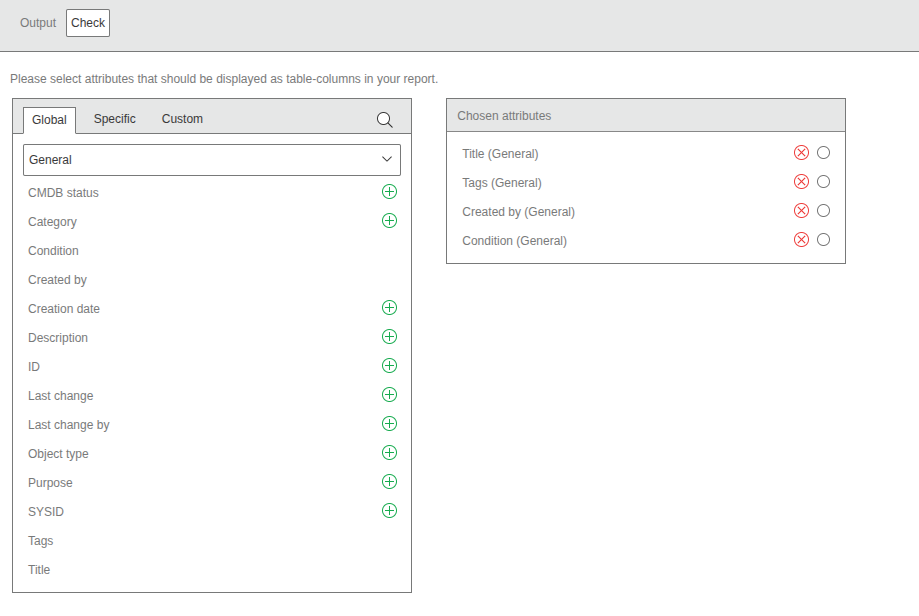

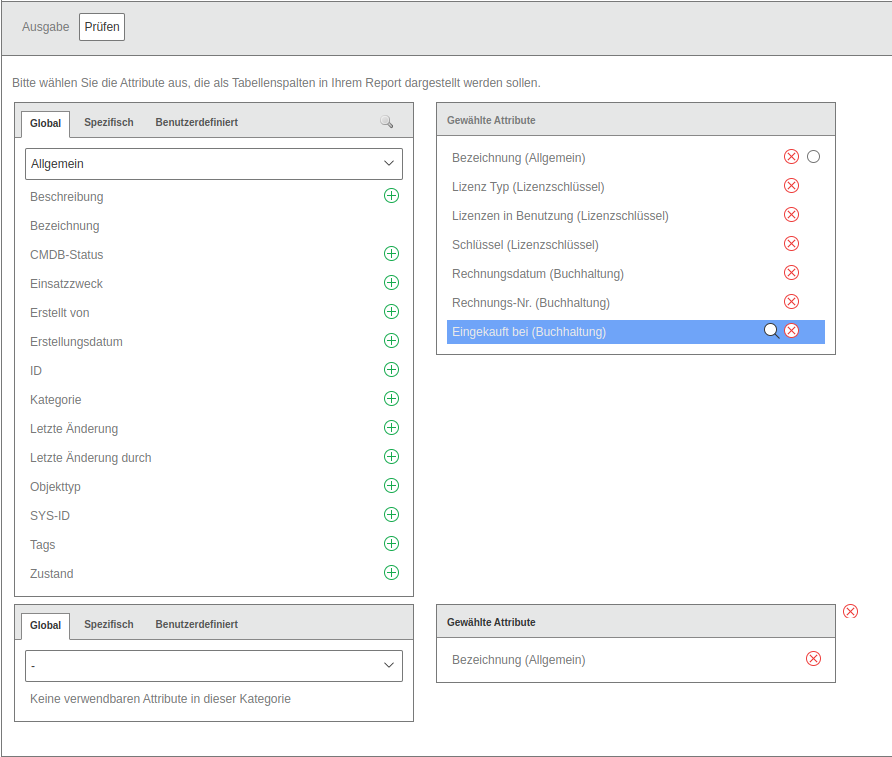

In the Output area, you define the columns of the result list. Select the desired attributes from the three category types Global, Specific, and Custom. Each attribute defines a column whose order you set via drag and drop.

Via the radio button next to an attribute, you activate automatic sorting. If no attribute is selected, sorting is by object ID.

If you select an object reference as an attribute, you can add further attributes of the linked object via the displayed magnifying glass. These sub-queries can be nested arbitrarily (recursively).

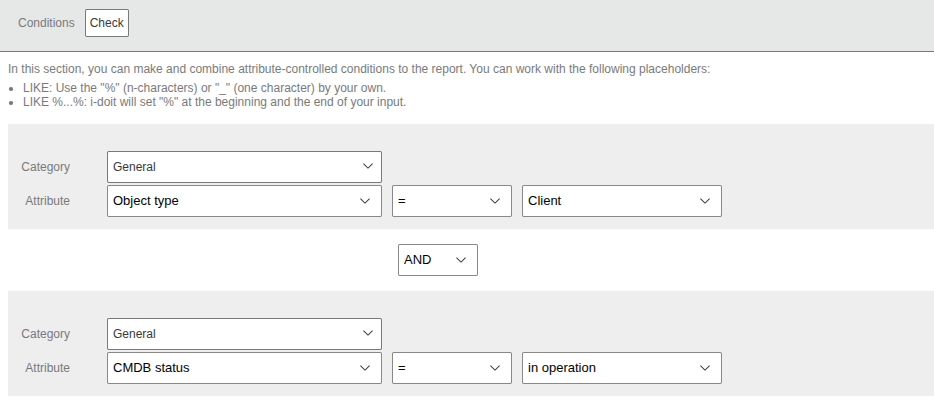

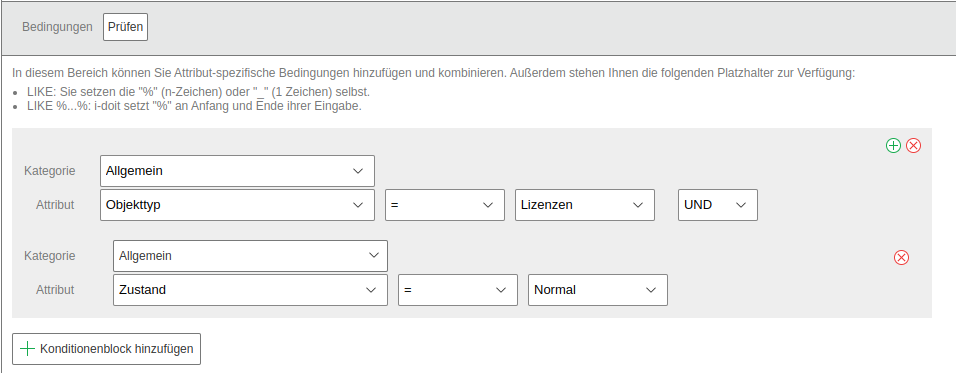

Conditions#

Under Conditions, you specify the desired filter criteria. Select the attribute to be checked with the matching category and construct the logical query: What value must the attribute match (or not)? Typical operators such as =, !=, <, > are available depending on the field type.

Via the + button, you add more conditions and nest them with and or or. Via the - button, you remove conditions. Empty condition blocks are automatically removed.

To set conditions on attributes of linked objects, select the attribute with the object relationship and set the condition to Linked attribute. In a sub-condition block, you then specify the further conditions.

Updating Reports After an Update#

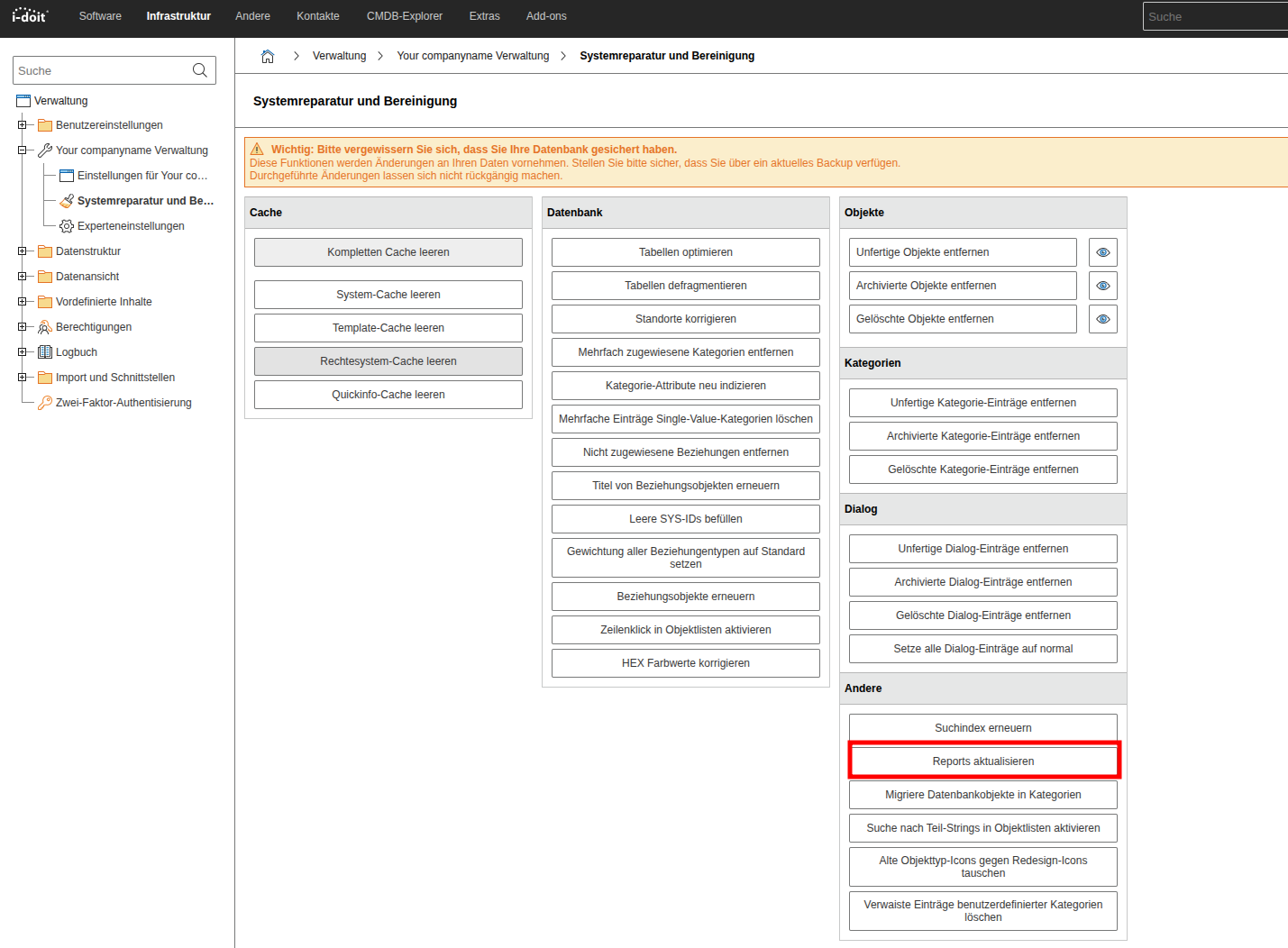

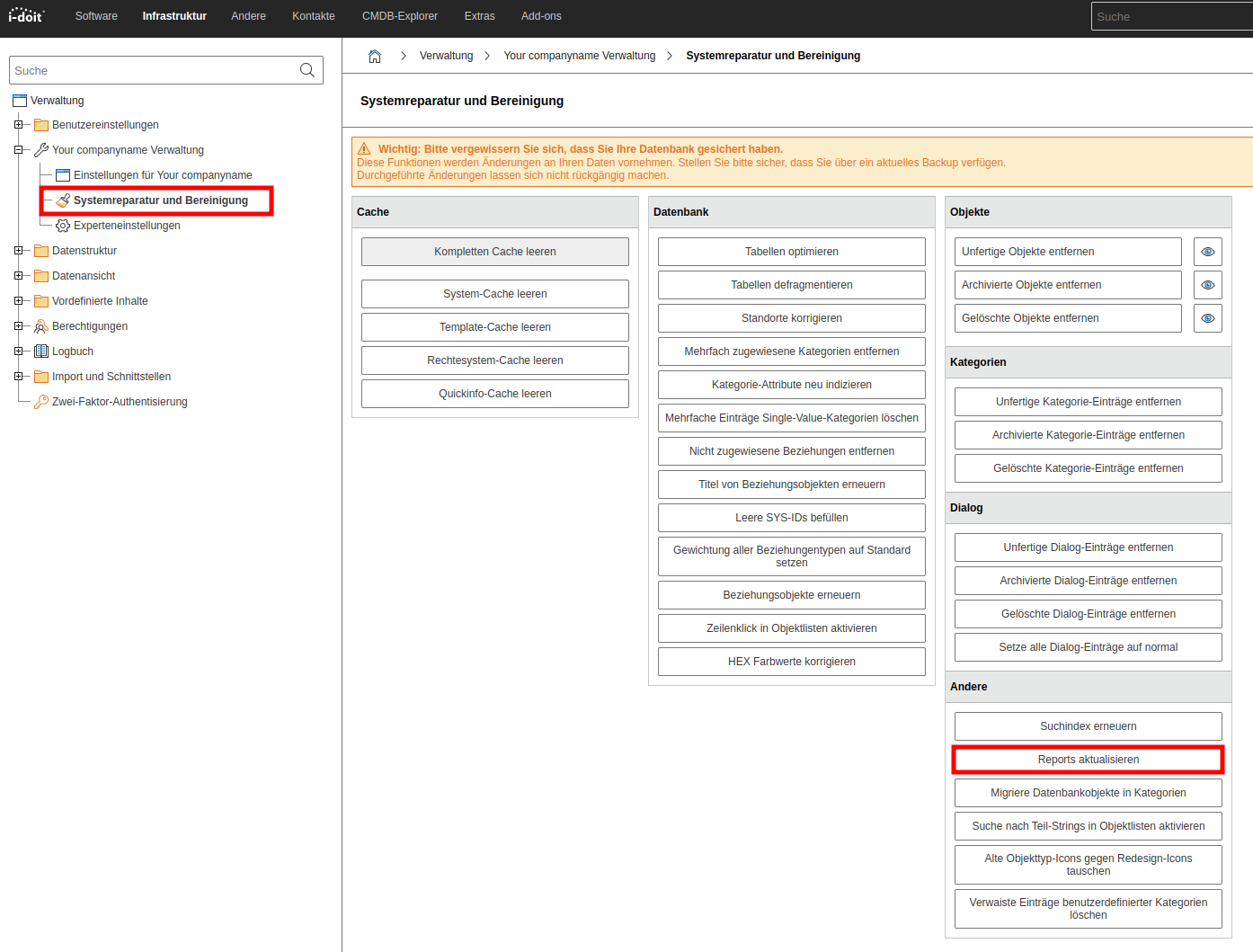

Through i-doit updates, the Query Editor may also change, so that queries are constructed differently than before. To ensure that reports always use the current logic, it is necessary to update these queries. This is possible either via the Administration or via the i-doit console utility.

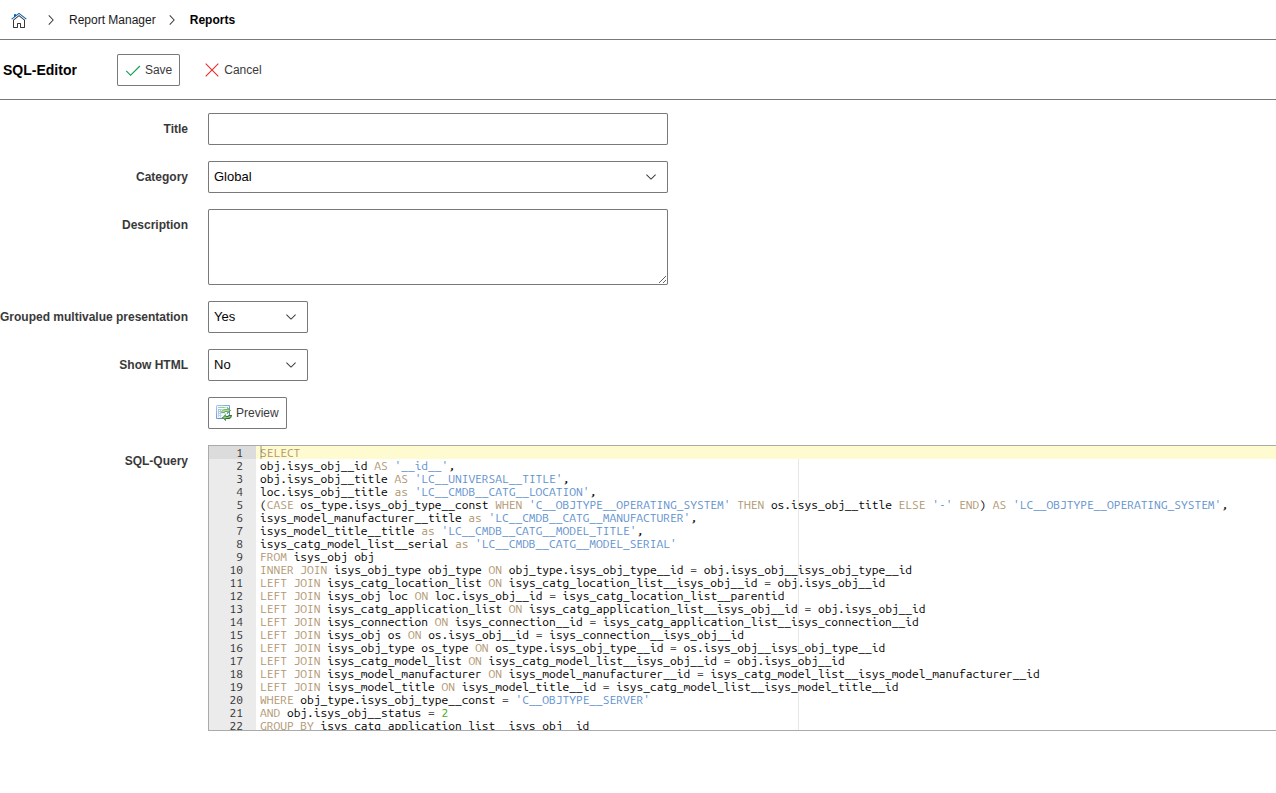

SQL Editor#

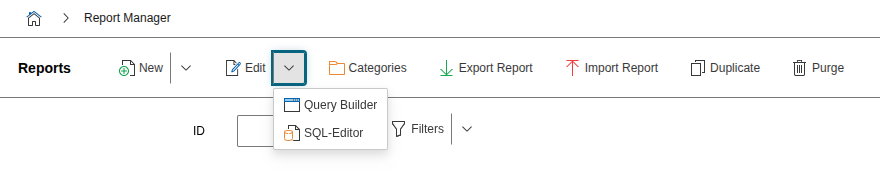

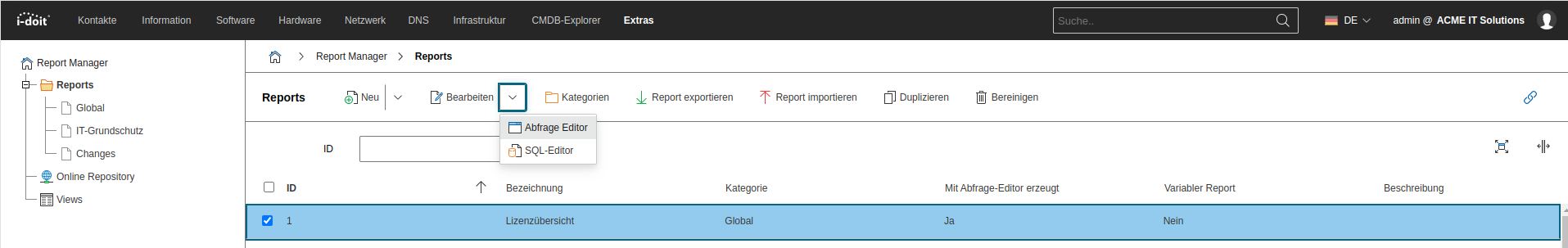

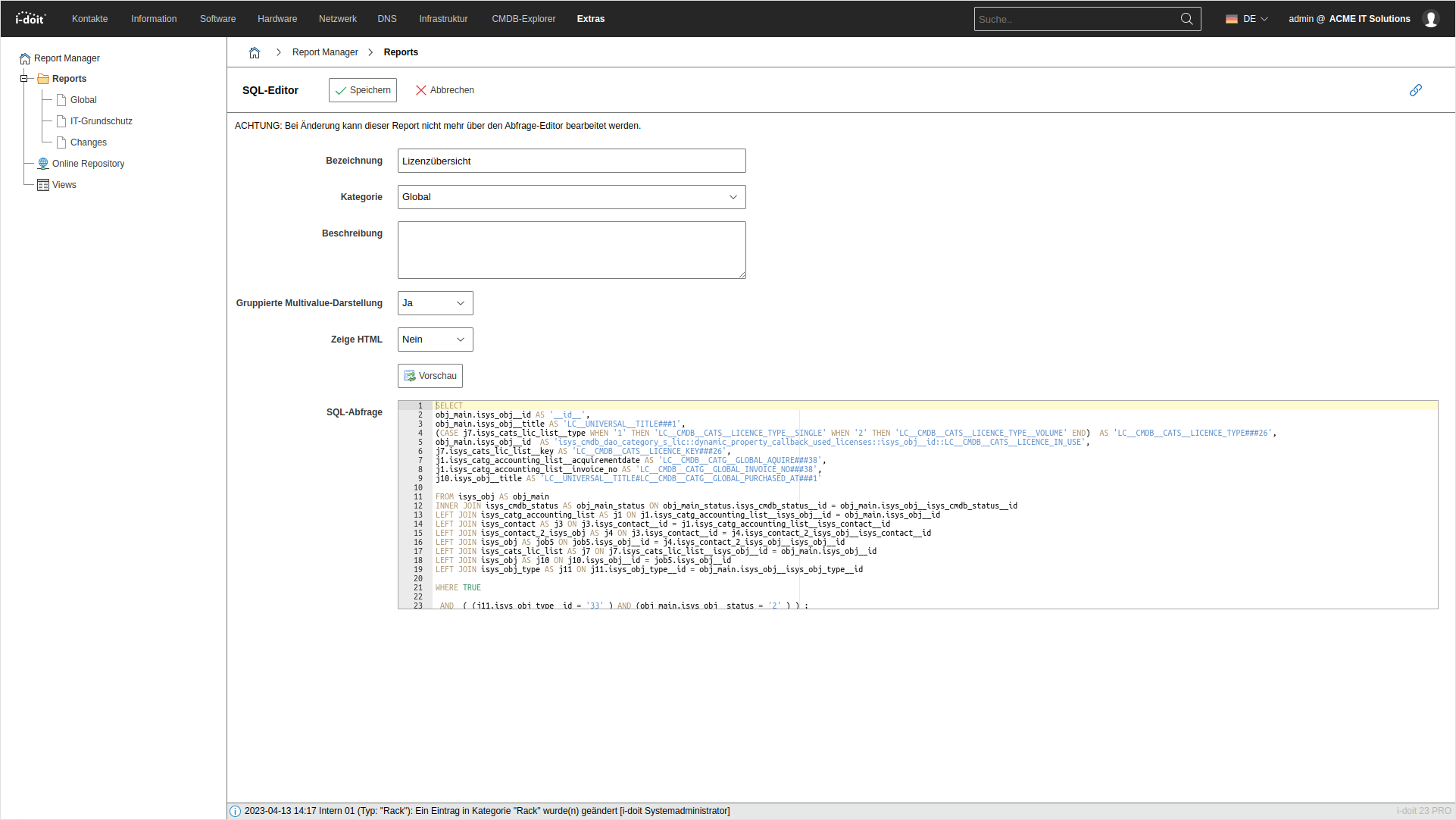

Every report can be created or edited via the SQL Editor -- including those created with the Query Editor. Click on the drop-down field next to New on the Reports overview page, or select an existing report, click the drop-down field next to Edit, and choose SQL Editor.

In the SQL Query form field, you write the query in SQL. Knowledge of the database structure of i-doit is required here. Important: You must always query objects and select the object ID as the first (invisible) column:

1

SELECT obj_main.isys_obj__id AS '__id__' FROM isys_obj AS obj_main;

Column names can be specified multilingually and are automatically translated by i-doit during the real-time query:

1

obj_main.isys_obj__title AS 'LC__UNIVERSAL__TITLE###1'

Exporting/Importing Reports#

You can export and import reports. Select the desired report via the checkbox and click the export button. The exported file can be imported into another instance or another tenant. Reports created with the Query Editor remain editable via the Query Editor even after import.

Note when transferring: Conditions and outputs that refer to individual content (e.g., an object ID or a custom category) must be edited afterward if they are not identical in the target instance.

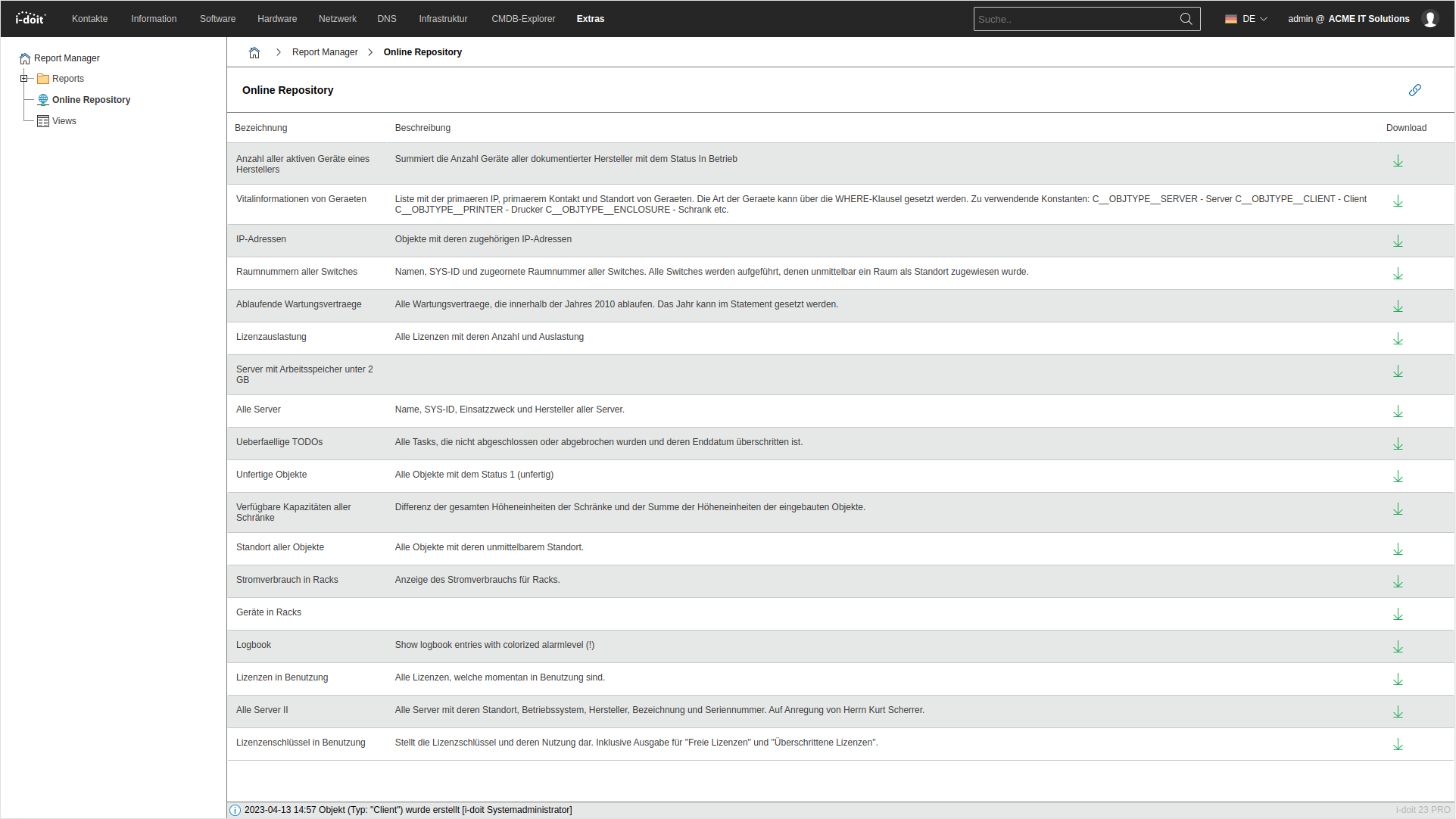

Online Repository#

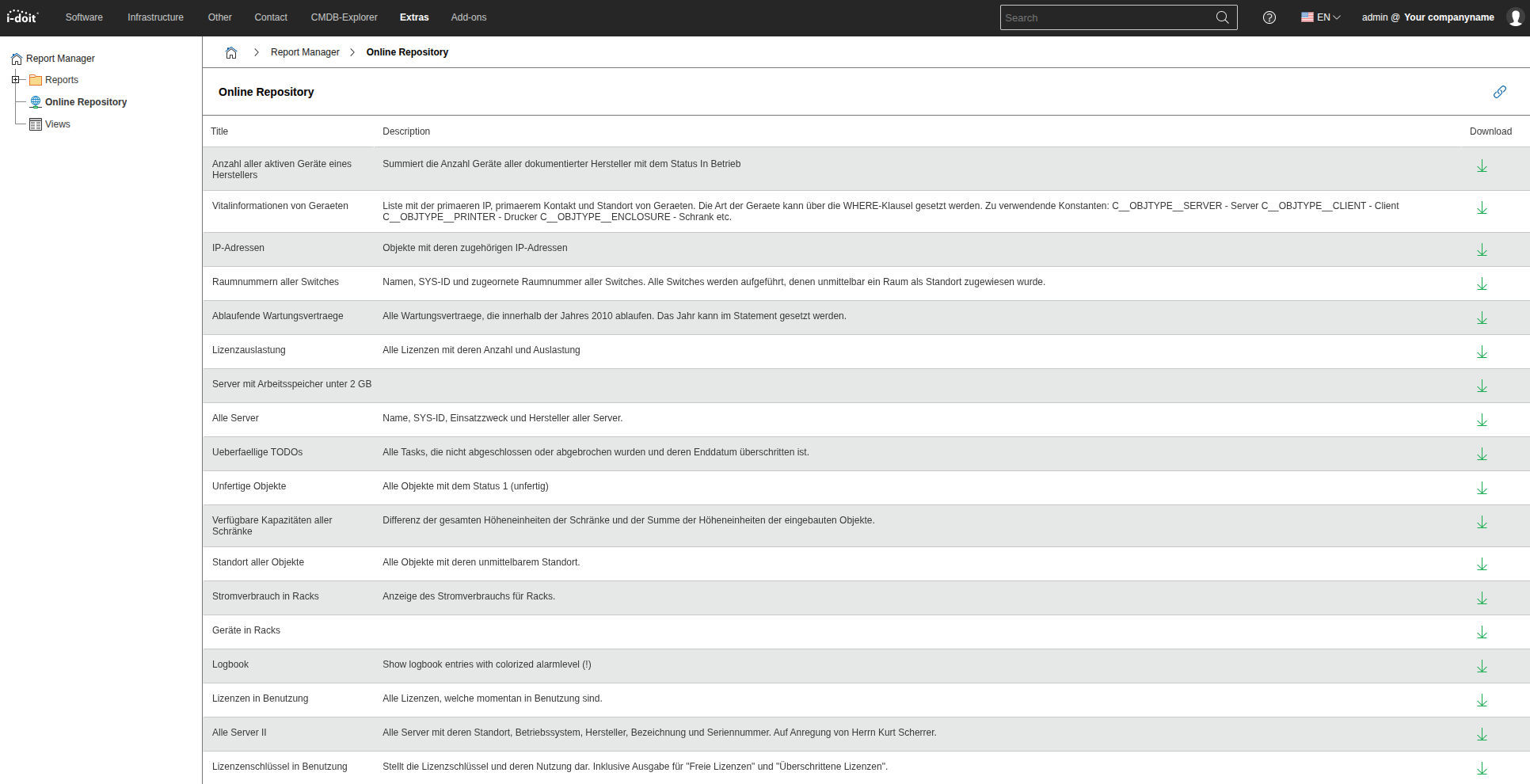

Pre-built reports are available for download on the internet. Via the Online Repository item, you can execute them directly or save them locally. An existing internet connection is required.

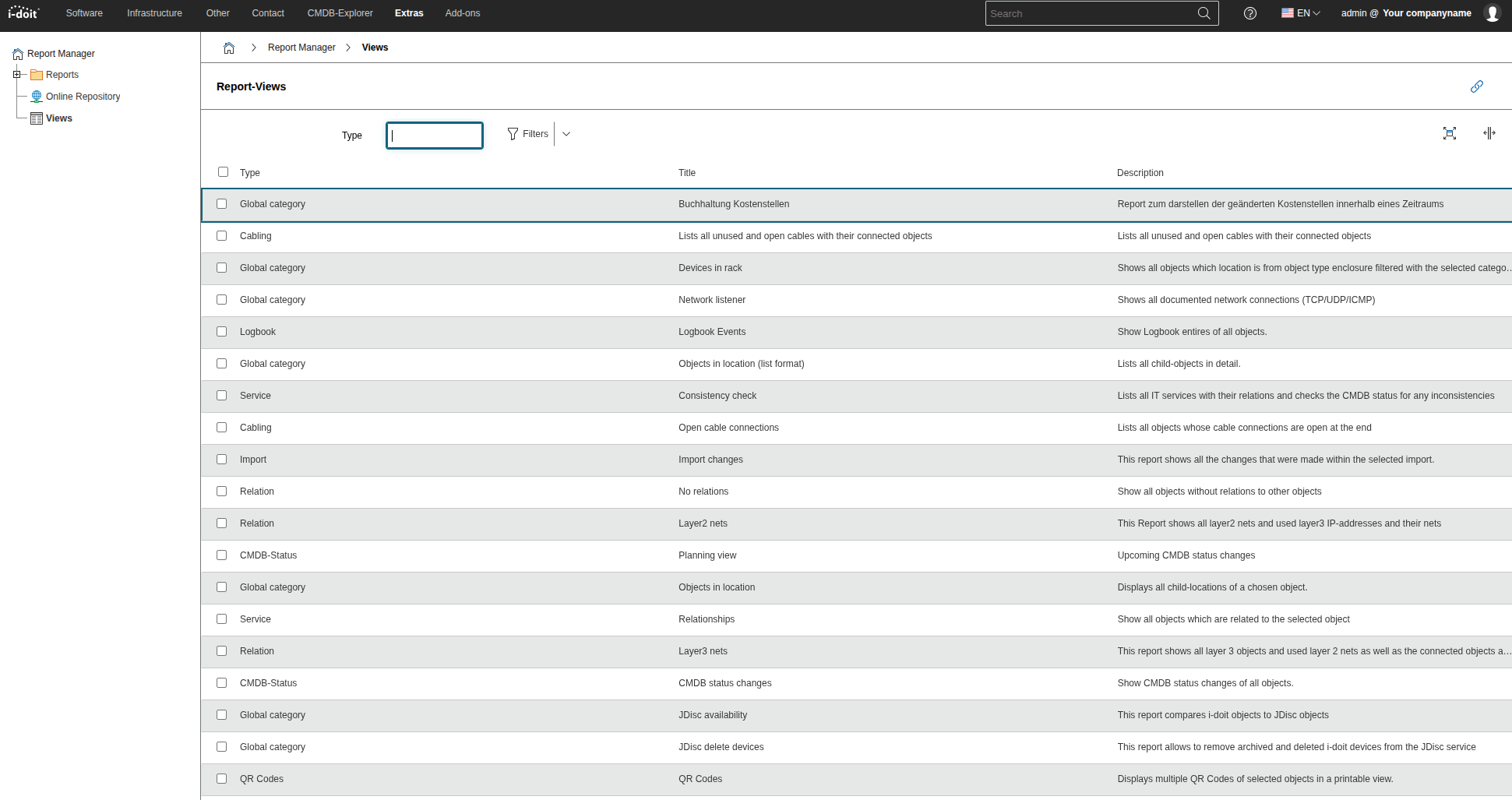

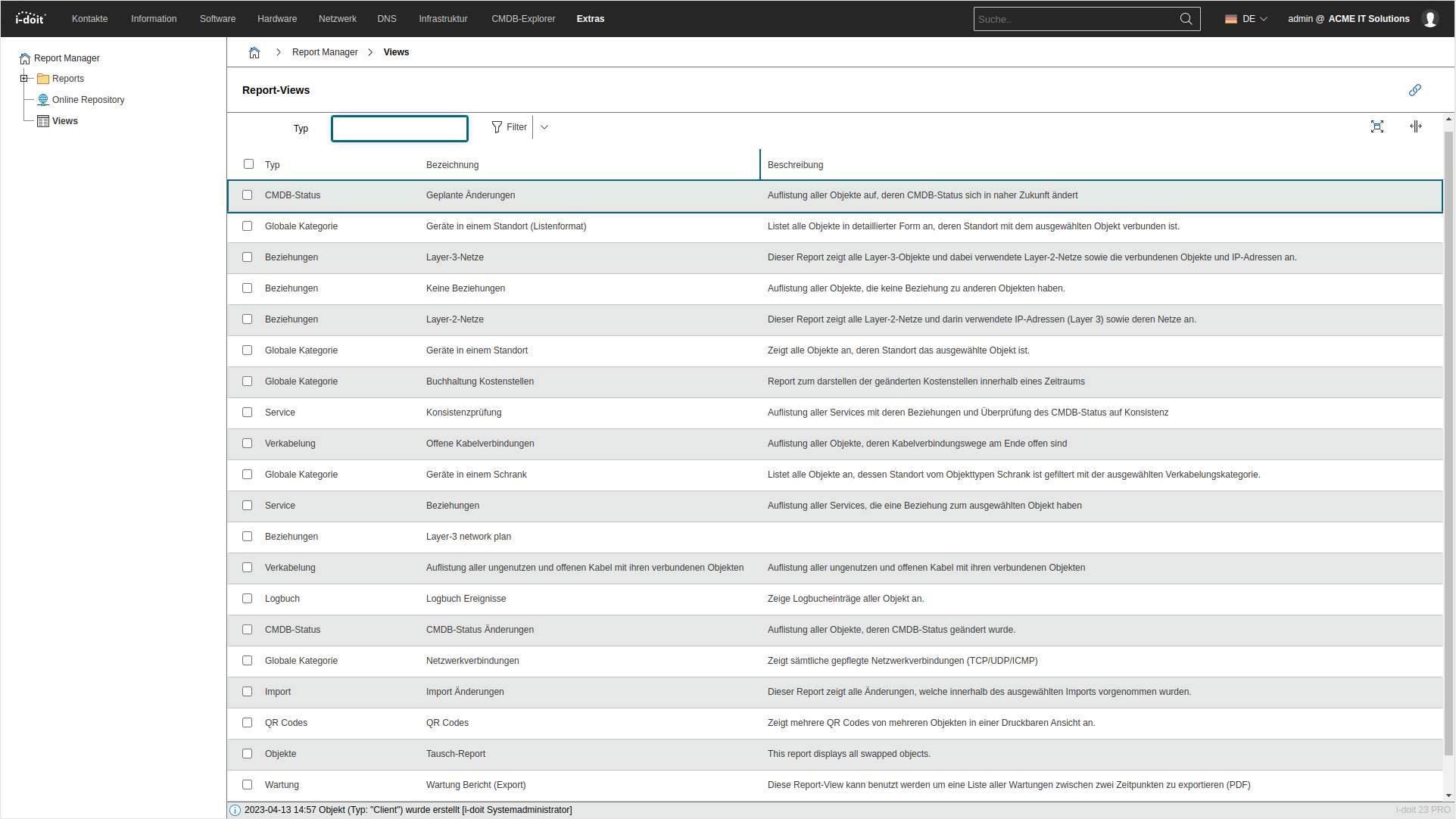

Report Views#

Report Views offer additional functions and views beyond the reports described above. New ones cannot be created, and existing ones cannot be edited or deleted.

Selection of useful Report Views:

• QR Codes: Preparing and printing multiple labels simultaneously that can contain a QR code as well as additional information and a logo.
• Devices at a location (list format)
• Network connections

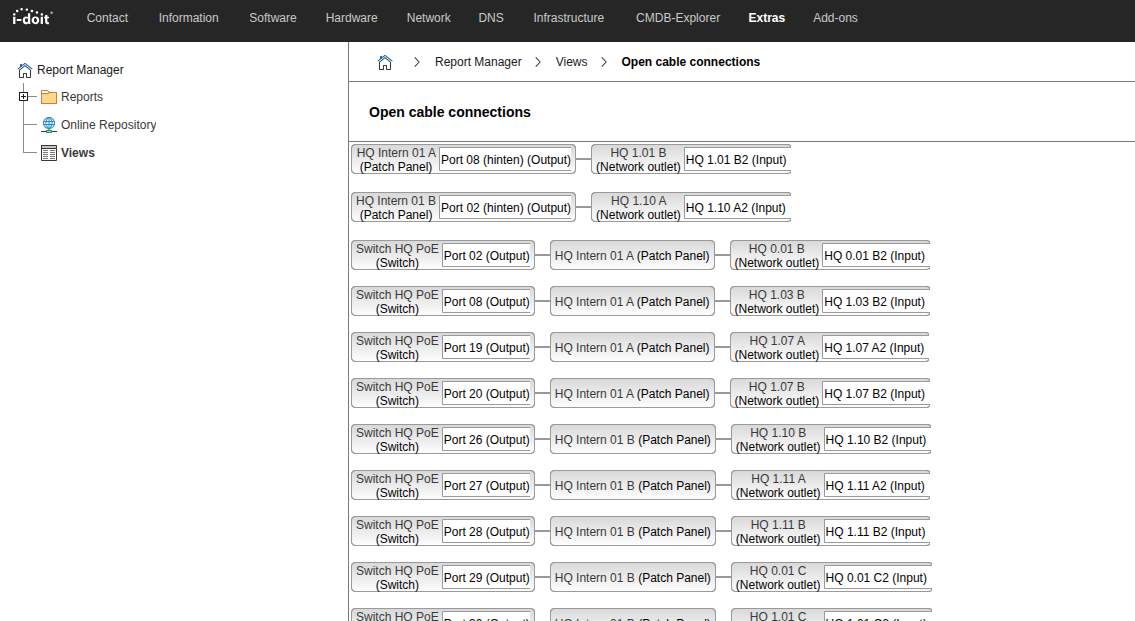

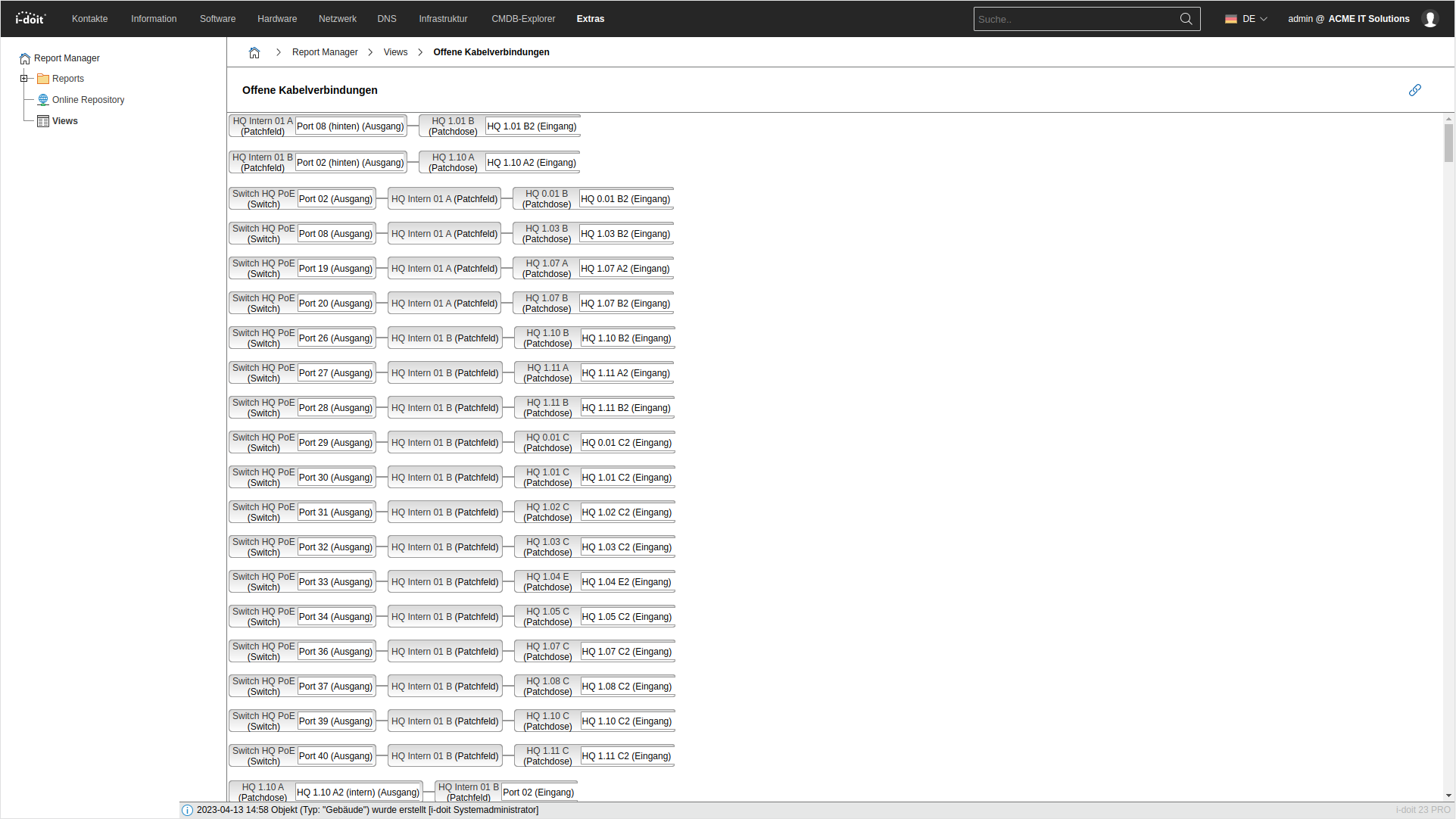

• Open cable connections

Automated Report Export#

Existing reports can be automatically exported as files without manual user intervention. This is done via the i-doit console utility using report-export.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

sudo -u www-data php console.php report-export --help

Usage:
    report-export [options]

Options:
-r, --reportId=REPORTID              ID of the report
-d, --exportPath=EXPORTPATH          Path to export the report into
-f, --exportFilename=EXPORTFILENAME  File name of export file, without extension (e.g. .pdf). Default is the title of the report
-t, --exportFileType=EXPORTFILETYPE  File Type of the export. Possible options: csv, txt, pdf, xml [default: "csv"]
-u, --user=USER                      User
-p, --password=PASSWORD              Password
-i, --tenantId=TENANTID              Tenant ID [default: 1]
-c, --config=CONFIG                  Config File
-h, --help                           Display this help message
-q, --quiet                          Do not output any message
-V, --version                        Display this application version
--ansi                               Force ANSI output
--no-ansi                            Disable ANSI output
-n, --no-interaction                 Do not ask any interactive question
-v|vv|vvv, --verbose                 Increase the verbosity of messages: 1 for normal output, 2 for more verbose output and 3 for debug

Help:
    Executes an i-doit report and saves it to a file as CSV, TXT, PDF or XML

Automation can be accomplished, for example, through a cron job.

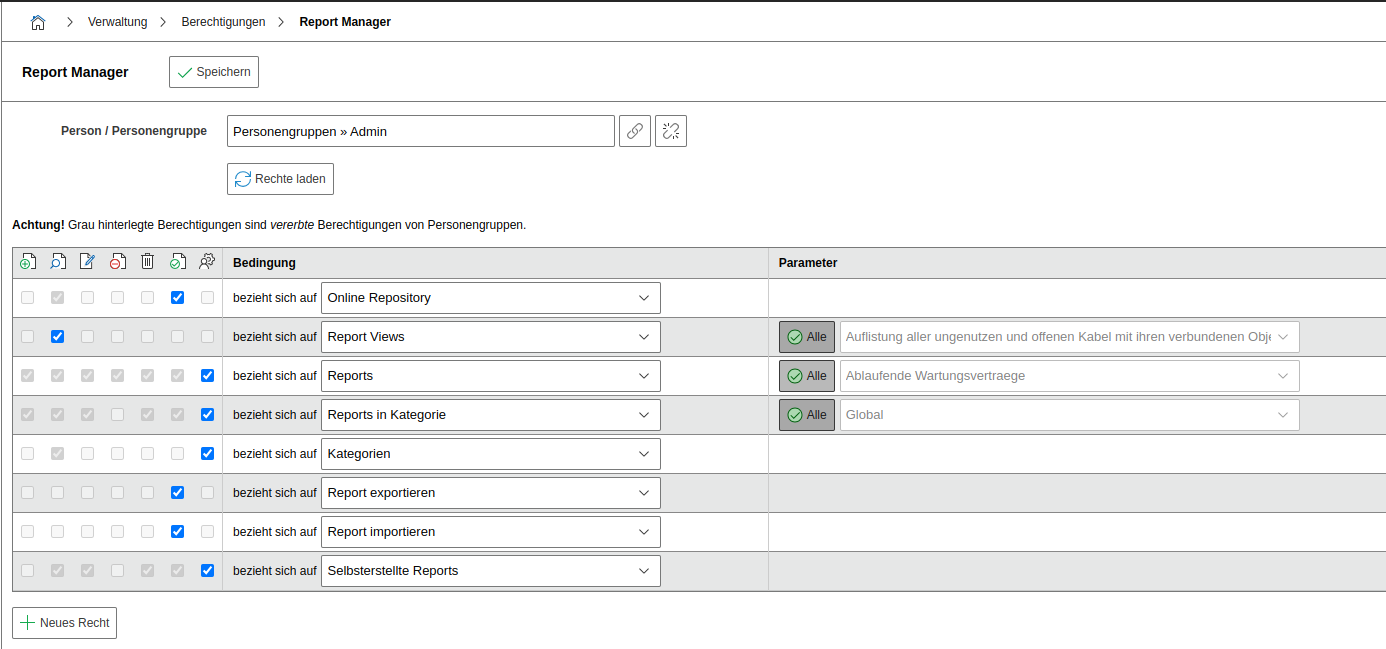

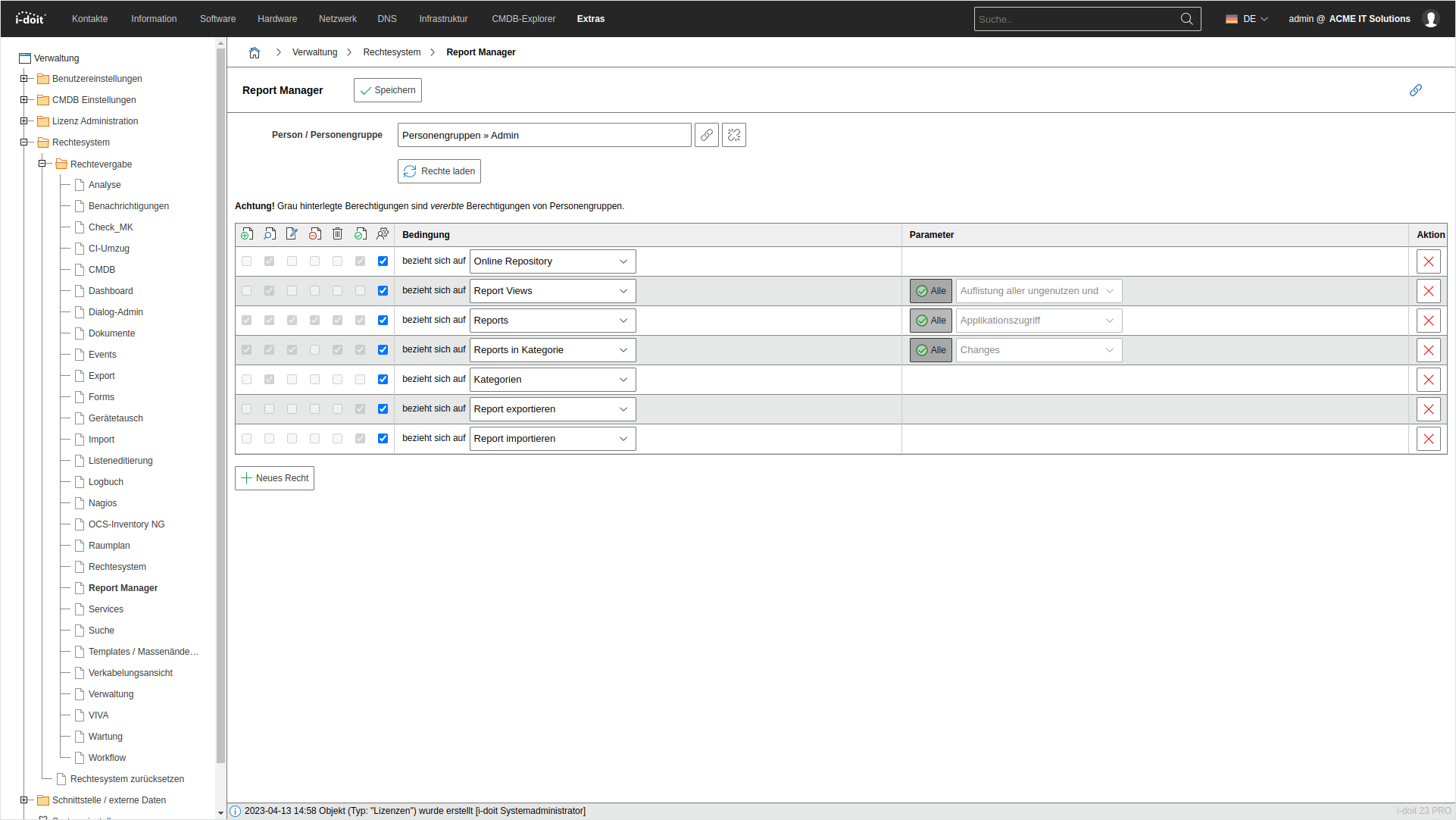

Assigning Permissions#

You can assign permissions for the Report Manager to users and user groups (object types Persons and Person Groups). The configuration can be found under Administration > Permissions > Report Manager. The following permissions are available:

• Online Repository
• Report Views
• Reports
• Reports in categories
• Categories
• Export report
• Import report
• Self-created reports

[](../assets/images/de/auswertungen/report-manager/14-rm.png

Variable Reports#

With Variable Reports, you can display data that is object-specific, rather than static as with normal reports.
